- LA5032 is a high-performance logic analyzer with 32 channels and 500M max sampling rate.
- Composed of two parts: software on personal computer and hardware equipment. It has the advantages of high sampling rate, large sampling depth, easy to use, etc.
- LA5032 can sample 32 digital signal at same time. Then the sampled data can be displayed, analyzed, exported and saved on the computer. Software can also decode the data if it conform to the standard protocol of the software supported. Then the decoded data can be displayed, exported and saved.
- Supported standard protocols: MIPI DSI LP,UART/RS-232/485, I2C, SPI, CAN, DMX512, HDMI CEC, I2S/PCM, JTAG, LIN, Manchester, Modbus, 1-Wire, UNI/O, SDIO, SMBus, USB1.1, PS/2, NEC InfraRed, Parallel, etc...
Product Description

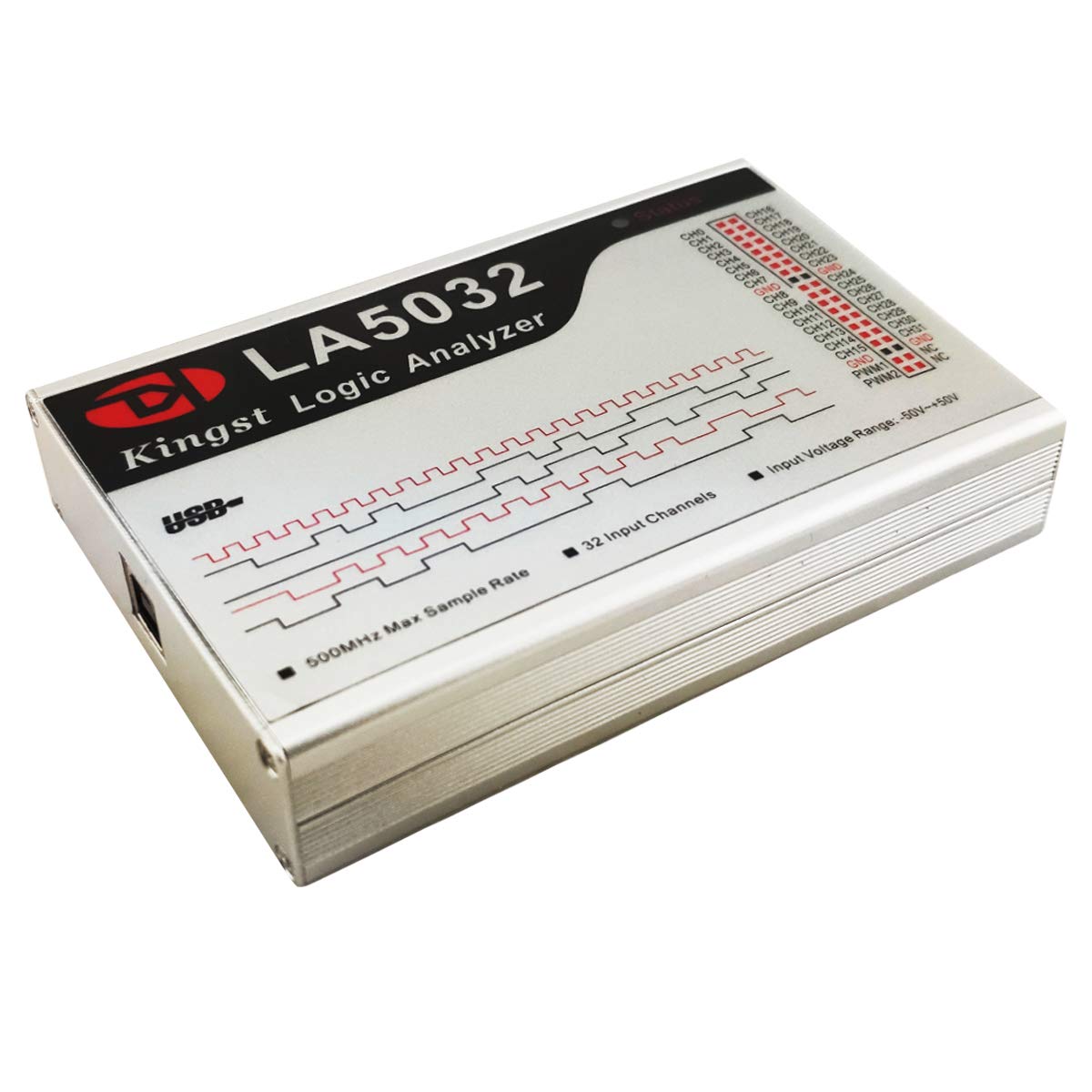

InnoMaker Logic Analyzer - LA5032
LA5032 is a logic analyzer product with high cost performance. It has 32 input channels and the sample rate is up to 500MHz. Along with the PC software KingstVIS, 32 channels of digital signal could be sampled at the same time, and then they could be converted to digital waveform and displayed on the PC screen. The signal could be analyzed with many standard protocols, to get more straightforward communication data. It helps a lot in testing and analyzing digital system(MCU/ARM/FPGA, etc.), developing and debugging several communication programs, or monitoring and recording some digital signals for a long time.
 |  |  |  | |
|---|---|---|---|---|
| LA1010 (Learn More) | LA2016 (Learn More) | LA5016 (Learn More) | LA5032 (Learn More) | |
| Input Channel | 16 | 16 | 16 | 32 |
| Max Sampling Rate | 100M | 200M | 500M | 500M |
| Fastest Digital Signal | 20MHz | 40MHz | 80MHz | 80MHz |
| Min Pulse Width | 20ns | 12.5ns | 6.25ns | 6.25ns |
| Hardware Memory Size | N/A | 1G bits | 2G bits | 4G bits |
| Hardware Sampling Depth (can be ensured) | N/A | 50M Sas | 100M Sas | 100M Sas |
| Max Compression Depth (can't be ensured) | 10G Sas | 10G Sas | 10G Sas | 10G Sas |
| Threshold Voltages | -4V ~ +4V | -4V ~ +4V | -4V ~ +4V | -4V ~ +4V |
Feature:
- Portable and lightweight
- 500M sampling rate @ full channels
- Large sampling depth and support compression
- The built-in PWM generator
- Compatible USB2.0/3.0 interface
- Powerful software and easy to use
- Support online upgrade automatically
Product Specifications
